性能特點:
QC12K采用先進的集成式液壓系統，可靠性好;
采用三點支承滾動導軌，消除支承間隙，提高剪切質量:
消除導軌間隙，提高剪切質量;機動后檔料，手動微調，數字顯示;
刀片間隙電動調整，精準、快速:
矩形刀片，四個刃口均可使用，使用壽命長。剪切角可調減少板料扭曲變形;
上刀架采用內傾結構，便于落料，并能提高工作的精度;
剪切角可調，減少板料扭曲變形:
具有分段剪切功能;具有燈光照明裝置功能;

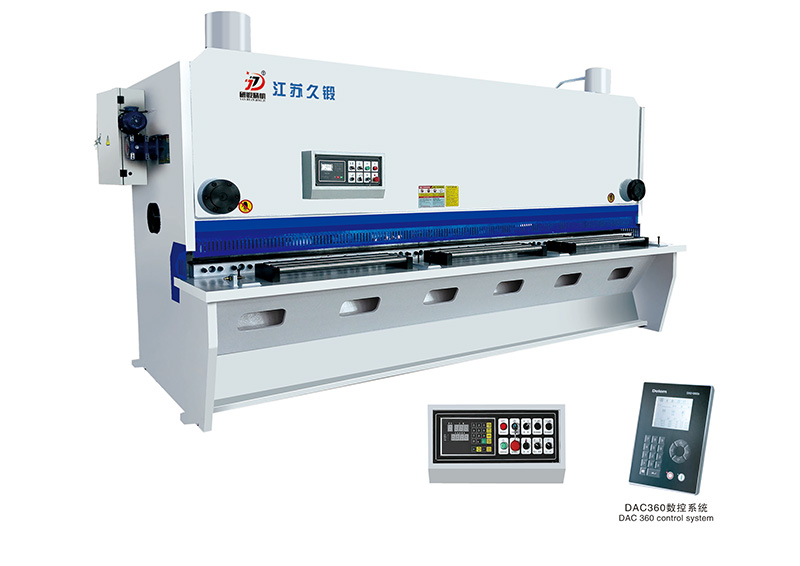

閘式剪板機技術參數
QC11Y/K-閘式剪板機技術參數 Technical Parameter
規格
Specification
|
可剪板厚
Shearing Thickness (mm)
|
可剪板寬
Shearing Width (mm)
|
行程次數
Strokes (mm⁻¹)
|
后擋料行程
Backgauge Range (mm)
|
剪切角度
Shearing Angle (°)
|
工作臺高度
Height of working table (mm)
|
電機功率
Main power (kW)
|
|
QC11Y-6x2500
|
6
|
2500
|
8 ~ 16
|
20~600
|
30° ~ 1°30
|
800
|
7.5
|
|
QC11Y-6x3200
|
6
|
3200
|
8 ~ 16
|
20~600
|
30° ~ 1°30
|
800
|
7.5
|
|
QC11Y-6x4000
|
6
|
4000
|
8 ~ 16
|
20~600
|
30° ~ 1°30
|
800
|
7.5
|
|
QC11Y-6x5000
|
6
|
5000
|
8 ~ 16
|
20~800
|
30° ~ 1°30
|
900
|
11
|
|
QC11Y-6x6000
|
6
|
6000
|
8 ~ 16
|
20~800
|
30° ~ 1°30
|
1000
|
11
|
|
QC11Y-8x2500
|
8
|
2500
|
8 ~ 16
|
20~600
|
30° ~ 1°45
|
800
|
11
|
|
QC11Y-8x3200
|
8
|
3200
|
8 ~ 16
|
20~600
|
30° ~ 1°45
|
850
|
11
|
|
QC11Y-8x4000
|
8
|
4000
|
8 ~ 16
|
20~600
|
30° ~ 1°45
|
900
|
11
|
|
QC11Y-8x5000
|
8
|
5000
|
8 ~ 16
|
20~800
|
30° ~ 2°
|
1000
|
15
|
|
QC11Y-8x6000
|
8
|
6000
|
8 ~ 16
|
20~800
|
30° ~ 2°
|
1050
|
15
|
|
QC11Y-12x2500
|
12
|
2500
|
8 ~ 12
|
20~800
|
30° ~ 2°
|
840
|
15
|
|
QC11Y-12x3200
|
12
|
3200
|
8 ~ 12
|
20~800
|
30° ~ 2°
|
900
|
15
|
|
QC11Y-12x4000
|
12
|
4000
|
8 ~ 12
|
20~800
|
30° ~ 2°
|
940
|
15
|
|
QC11Y-12x5000
|
12
|
5000
|
8 ~ 12
|
20~1000
|
30° ~ 2°
|
1000
|
22
|
|
QC11Y-12x6000
|
12
|
6000
|
8 ~ 12
|
20~1000
|
30° ~ 2°
|
1060
|
30
|
|
QC11Y-16x2500
|
16
|
2500
|
8 ~ 12
|
20~800
|
30° ~ 2°30
|
840
|
22
|
|
QC11Y-16x3200
|
16
|
3200
|
7 ~ 10
|
20~800
|
30° ~ 2°30
|
900
|
22
|
|
QC11Y-16x4000
|
16
|
4000
|
7 ~ 10
|
20~800
|
30° ~ 2°30
|
940
|
22
|
|
QC11Y-16x5000
|
16
|
5000
|
7 ~ 10
|
20~1000
|
30° ~ 2°30
|
1000
|
30
|
|
QC11Y-16x6000
|
16
|
6000
|
7 ~ 10
|
20~1000
|
30° ~ 2°30
|
1100
|
37
|
|
QC11Y-20x2500
|
20
|
2500
|
7 ~ 10
|
20~800
|
1°30' ~ 3°
|
900
|
30
|
|
QC11Y-20x3200
|
20
|
3200
|
6 ~ 10
|
20~800
|
1°30' ~ 3°
|
950
|
30
|
|
QC11Y-20x4000
|
20
|
4000
|
6 ~ 10
|
20~800
|
1°30' ~ 3°
|
1100
|
30
|
|
QC11Y-20x5000
|
20
|
5000
|
6 ~ 10
|
20~1000
|
1°30' ~ 3°
|
1100
|
37
|
|
QC11Y-20x6000
|
20
|
6000
|
6 ~ 9
|
20~1000
|
1°30' ~ 3°
|
1200
|
37
|
|
QC11Y-25x2500
|
25
|
2500
|
6 ~ 9
|
20~800
|
1°30' ~ 3°30
|
900
|
37
|
|
QC11Y-25x3200
|
25
|
3200
|
6 ~ 9
|
20~800
|
1°30' ~ 3°30
|
950
|
37
|
|
QC11Y-25x4000
|
25
|
4000
|
6 ~ 8
|
20~1000
|
1°30' ~ 3°30
|
1100
|
37
|
|
QC11Y-32x2500
|
32
|
2500
|
6 ~ 8
|
20~1000
|
1°30' ~ 4°
|
1000
|
55
|
|
QC11Y-32x3200
|
32
|
3200
|
6 ~ 8
|
20~1000
|
1°30' ~ 4°
|
1100
|
55
|
|
QC11Y-40x2500
|
40
|
2500
|
4 ~ 6
|
20~1000
|
1°30' ~ 4°
|
1200
|
55
|
|
QC11Y-40x3200
|
40
|
3200
|
4 ~ 6
|
20~1000
|
1°30' ~ 4°
|
1200
|
55
|
由于產品在不斷的改進中，如出現樣本數據與產品實際數據有不一致處，應遵照雙方的技術協議參數。不再另行通知
Description and specifications given in this catalogue are subject to modification without notice.
|
